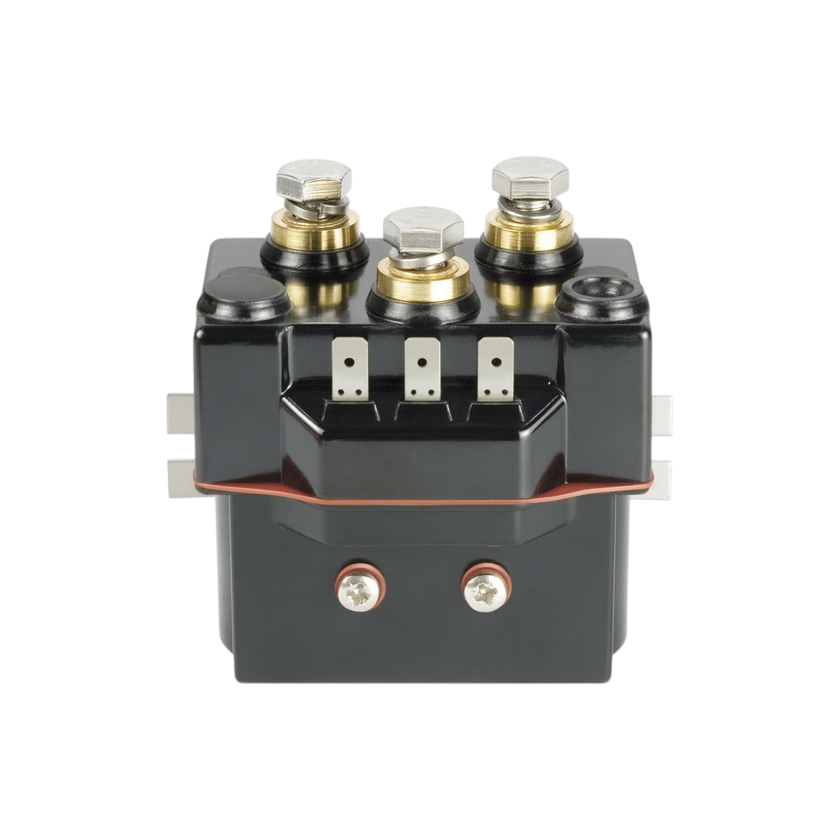

Quick relay 12V 150A, 3-pole
- Current: 150A
- Number of poles: 3
- Voltage: 12V
Quick T6315-12 is a reversing relay intended for controlling electric motors in windlasses and winches. The relay allows the motor to be operated in both directions of rotation.
External connections make installation easy and the IP66-rated housing effectively protects the device from water and dust. The relay is intended for electric motors with three cables connected to the motor.
The delivery includes a relay and product instructions.
Specifications
- Model Quick T6315-12
- Product type reversing relay
- Application anchor winches
- Maximum motor power 2500 W
- Operating current in intermittent operation 150 A
- Recommended fuse 2.5 A fast
- Protection class IP66
- Suitable for motors with three connection cables
Tuotenr: 38768
- Current: 150A
- Number of poles: 3
- Voltage: 12V
Quick T6315-12 is a reversing relay intended for controlling electric motors in windlasses and winches. The relay allows the motor to be operated in both directions of rotation.
External connections make installation easy and the IP66-rated housing effectively protects the device from water and dust. The relay is intended for electric motors with three cables connected to the motor.
The delivery includes a relay and product instructions.
Specifications
- Model Quick T6315-12
- Product type reversing relay
- Application anchor winches
- Maximum motor power 2500 W
- Operating current in intermittent operation 150 A
- Recommended fuse 2.5 A fast
- Protection class IP66
- Suitable for motors with three connection cables
Tuotenr: 38768
