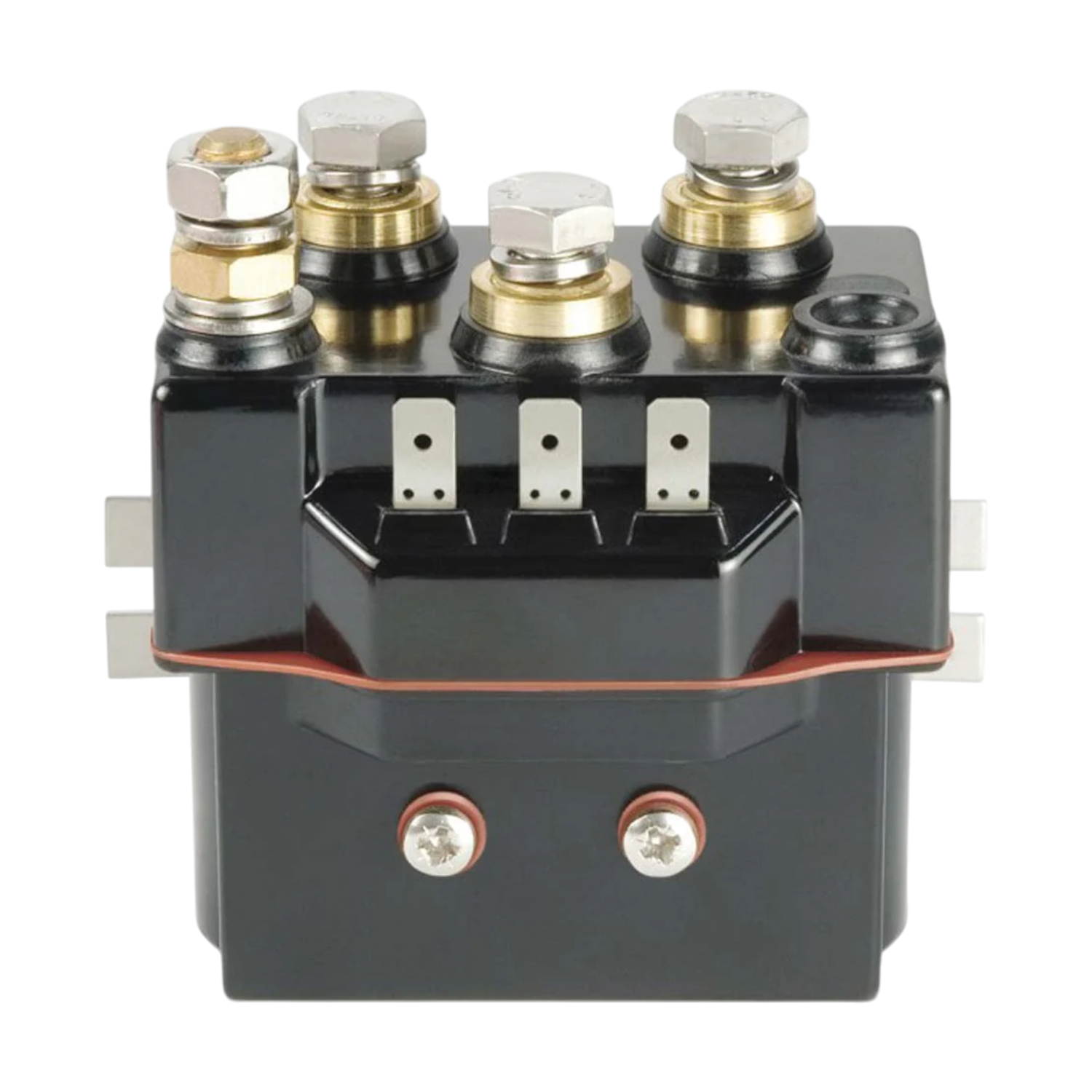

Quick relay 12V 150A 4-pole
Quick T6415-12 is a reversing relay intended for controlling electric motors in windlasses and winches. The relay allows the motor to be operated in both directions of rotation.
External connections make installation easy and the IP66-rated housing effectively protects the device from water and dust. The relay is intended for electric motors with four cables connected to the motor.
The delivery includes a relay and product instructions.
Specifications
- Model Quick T6415-12
- Product type reversing relay
- Application: anchor windlasses and winches
- Maximum motor power 2500 W
- Operating current in intermittent operation 150 A
- Recommended fuse 2.5 A fast
- Protection class IP66
- Suitable for motors with four connection cables
Tuotenr: 38769
Quick T6415-12 is a reversing relay intended for controlling electric motors in windlasses and winches. The relay allows the motor to be operated in both directions of rotation.
External connections make installation easy and the IP66-rated housing effectively protects the device from water and dust. The relay is intended for electric motors with four cables connected to the motor.
The delivery includes a relay and product instructions.
Specifications
- Model Quick T6415-12
- Product type reversing relay
- Application: anchor windlasses and winches
- Maximum motor power 2500 W
- Operating current in intermittent operation 150 A
- Recommended fuse 2.5 A fast
- Protection class IP66
- Suitable for motors with four connection cables
Tuotenr: 38769
