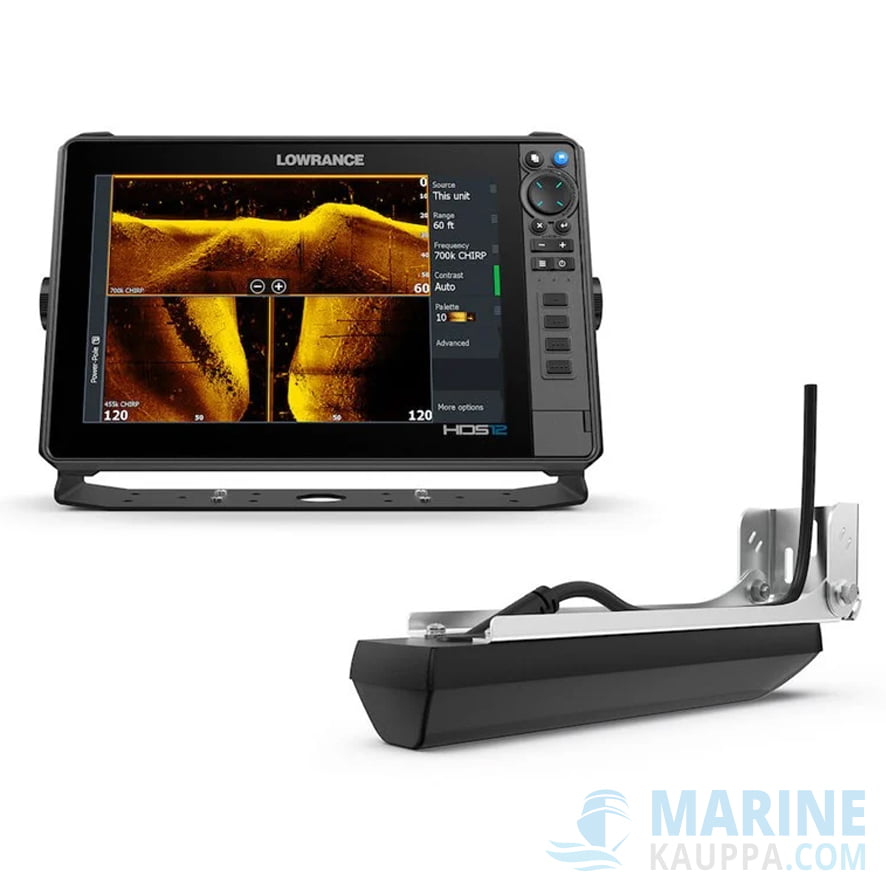

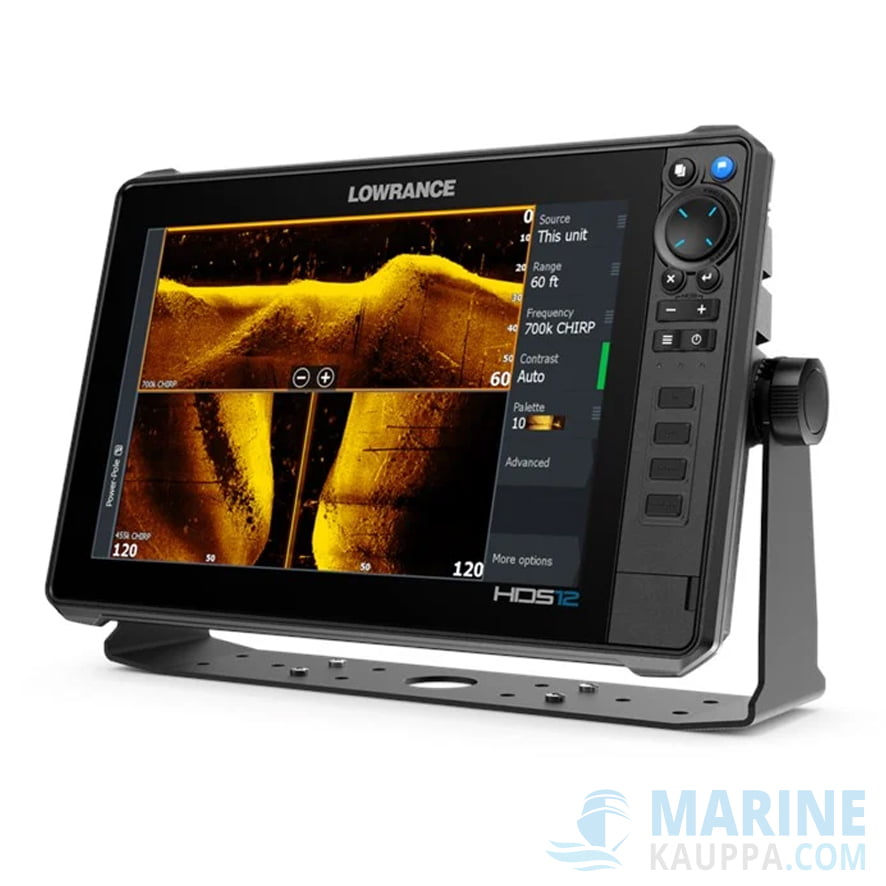

Lowrance HDS PRO 12 sonar/chartplotter with Active Imaging HD 3-in-1 transducer

The legendary Lowrance HDS now reaches a new level

HDS PRO offers cutting-edge sonar technology that helps you see more and succeed more. The built-in system supports the new ultra-high resolution Active Imaging HD transducer and the new ultra-accurate Active Target 2 sonar, helping you see clearer and find more fish than ever before.

See more and catch more fish with the new HDS PRO fishfinder/chartplotter. See in real time how fish react to your lures with the new high-resolution ActiveTarget® 2 Live sonar, and find fish and where they’re hiding with new Active Imaging™ HD technology. Find fishing grounds quickly with the latest, most detailed C-MAP® charts, and get access to a complete fishing network and expanded boat control from bow to stern.

The revamped ACTIVE TARGET 2 is in a class of its own

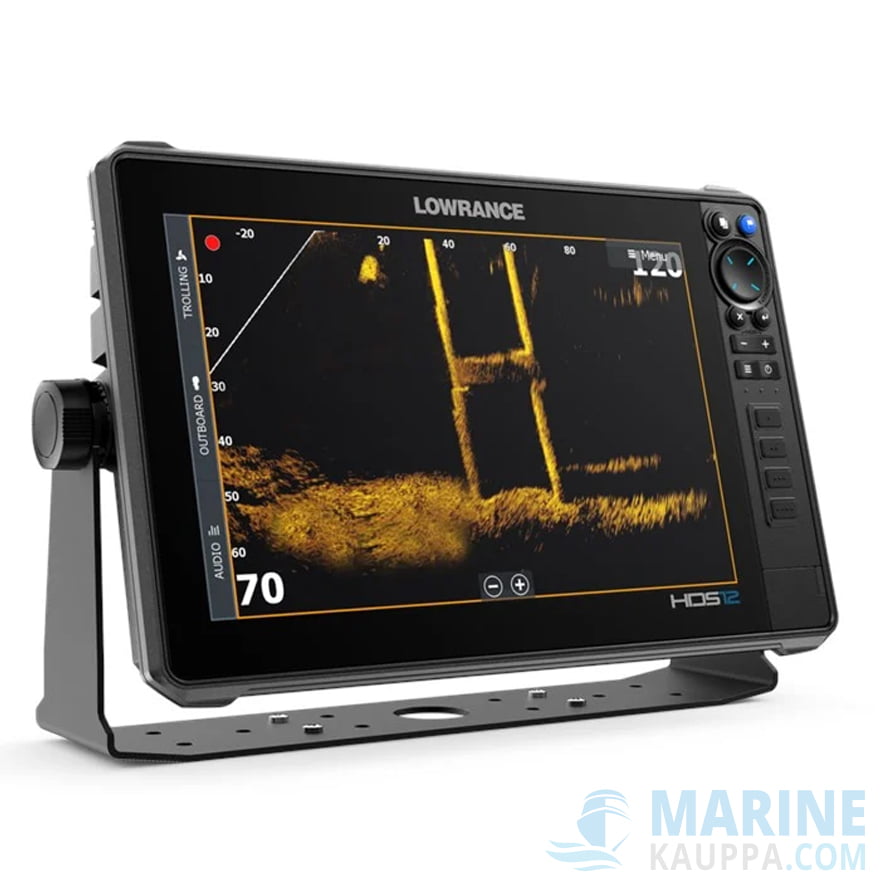

The Active Target 2 live sonar offers premium resolution and a highly accurate real-time view of fish and bottom formations. You can see how fish react to your lure in real time, allowing you to make quick adjustments and catch more fish.

Two sensors - one picture!

Combining the Lowrance Active Target 2 live sensor image into the same image is possible on Lowrance HDS Pro displays.

HDS® PRO supports all the best sonar technologies, including ActiveTarget® 2 Live sonar and Active Imaging™ HD sonar, touchscreen control for Power-Pole® anchors, and Ghost® trolling motor.

Expand your system with radar, autopilot and NMEA 2000® compatibility.

Main features

• True dual-channel CHIRP
• Built-in CHIRP and Broadband Sounder
• Expanded map and sonar views
• C-MAP Easy Routing and Navionics Autorouting compatible
• NMEA 2000 outboard support
• Wireless Wi-Fi connection and Bluetooth connection
• mobile phone notifications
• LiveCast smartphone integration (12" & 16" screens only)
• GPS: 10Hz GPS/GLONASS WAAS/EGNOS/MSAS
• Easy flush mounting or mounting bracket
• USB charging port (only on 12" & 16" screens)
• HDMI port (only on 12" & 16" monitors)

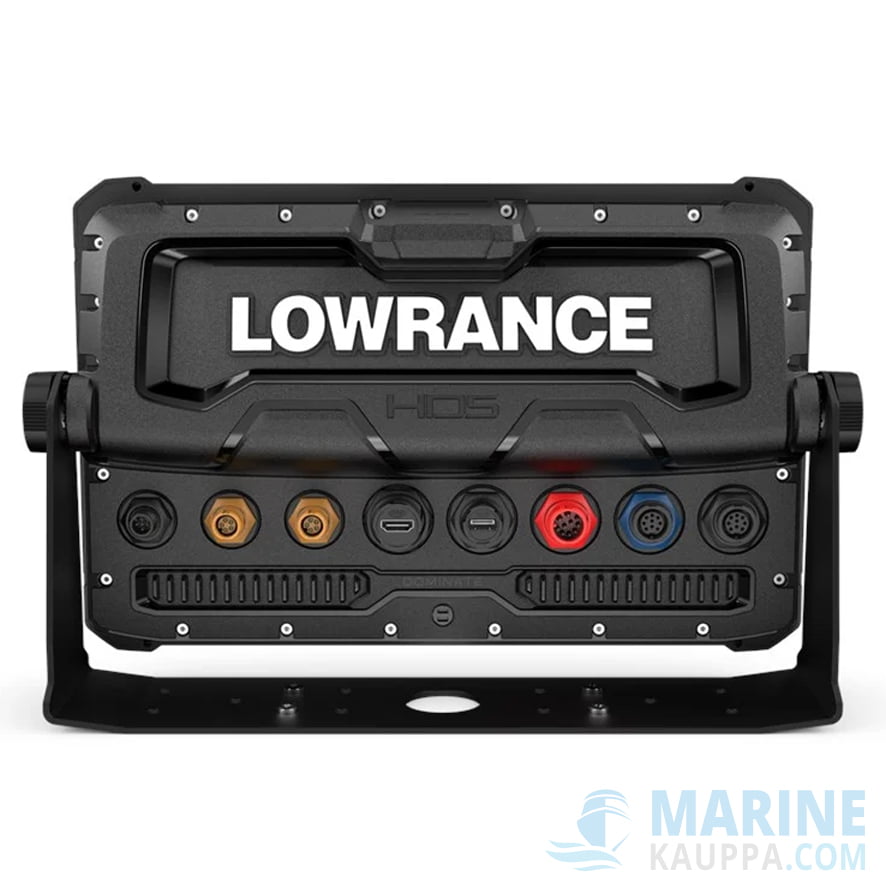

• NMEA 2000 Micro-C port
• 2 x 9-pin sonar port
• 2 x Ethernet communication ports
• 2 x micro SD card slots (max. 32GB)
• Internal memory 8GB
• Storage: 3000 waypoints, 100 routes & 100 tracks
• Waterproof rating IPX7
• Screen resolution 1280 x 800p
• Screen brightness > 1200 Nits
• Operating temperature range -15 C - +55 C
• Operating voltage 12V DC (10.8-17VDC)
• Typical current consumption 2.3A @ 13VDC
• Max. current consumption 3.6A @ 13VDC

The package includes

• 12" HDS PRO combo device
• Screen protector
• Mounting bracket
• Power cord and fuse
• Instructions for use (Finnish instructions available for download at www.lowrance.com)
