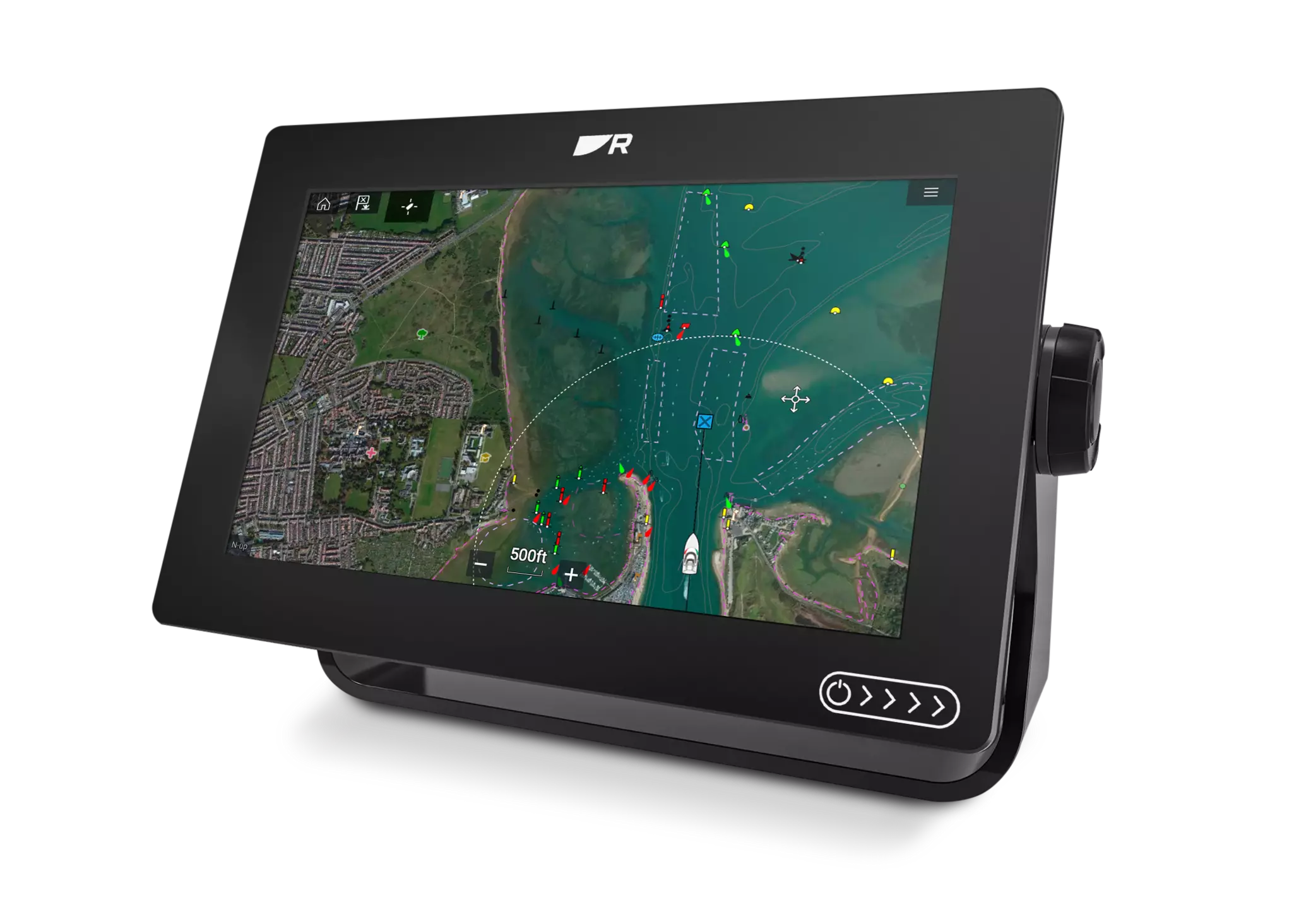

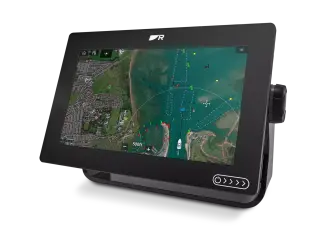

Raymarine AXIOM+ 12 RV multifunction display with echo sounder and chart
- Screen size: 12"
- Touchscreen
- Sonar must be purchased separately
- Width: 314 mm (12.36 inches)
- Height: 217 mm (8.54 inches)
- Depth including cables: 178 mm (7.01 in)
- Micro-B USB cable
- Ethernet connection:
- RayNet (10/100 Mbits/s)
- 1 MicroSDXC card slot
- NMEA 2000 connection DeviceNet (power cable has a port with a male connector)
- Wireless connections: Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n
- Internal memory: 16 GB solid state (14 GB available)
- Sensor connection: 25-pin RealVision connector. Requires A80490 adapter cable when using CPT-S sensors.
- Manufacturer's warranty 2 years, 1 additional year when product is registered with Raymarine within 90 days of purchase
Revamped Axiom+ multifunction display
Meet the next generation Raymarine AXIOM+ 12 RV multifunction display, the Axiom®+ RV, which takes fish-finding to a whole new level with RealVisionTM 3D CHIRP sonar technology. This updated display offers even brighter images with 25% brighter displays, making the entire navigation experience even better.
Enjoy responsive performance with a quad-core processor and expand Axiom+ RV's capabilities with solid-state radar, FLIR thermal imaging cameras, or add a marine camera and ClearCruise augmented reality for navigation.

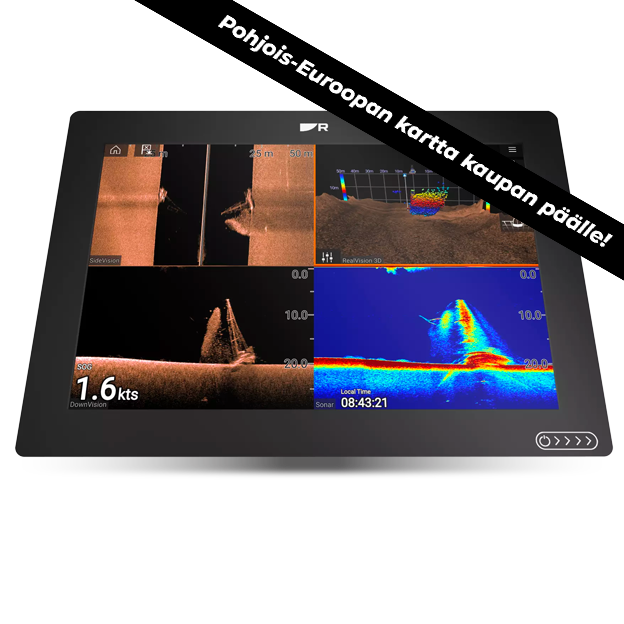

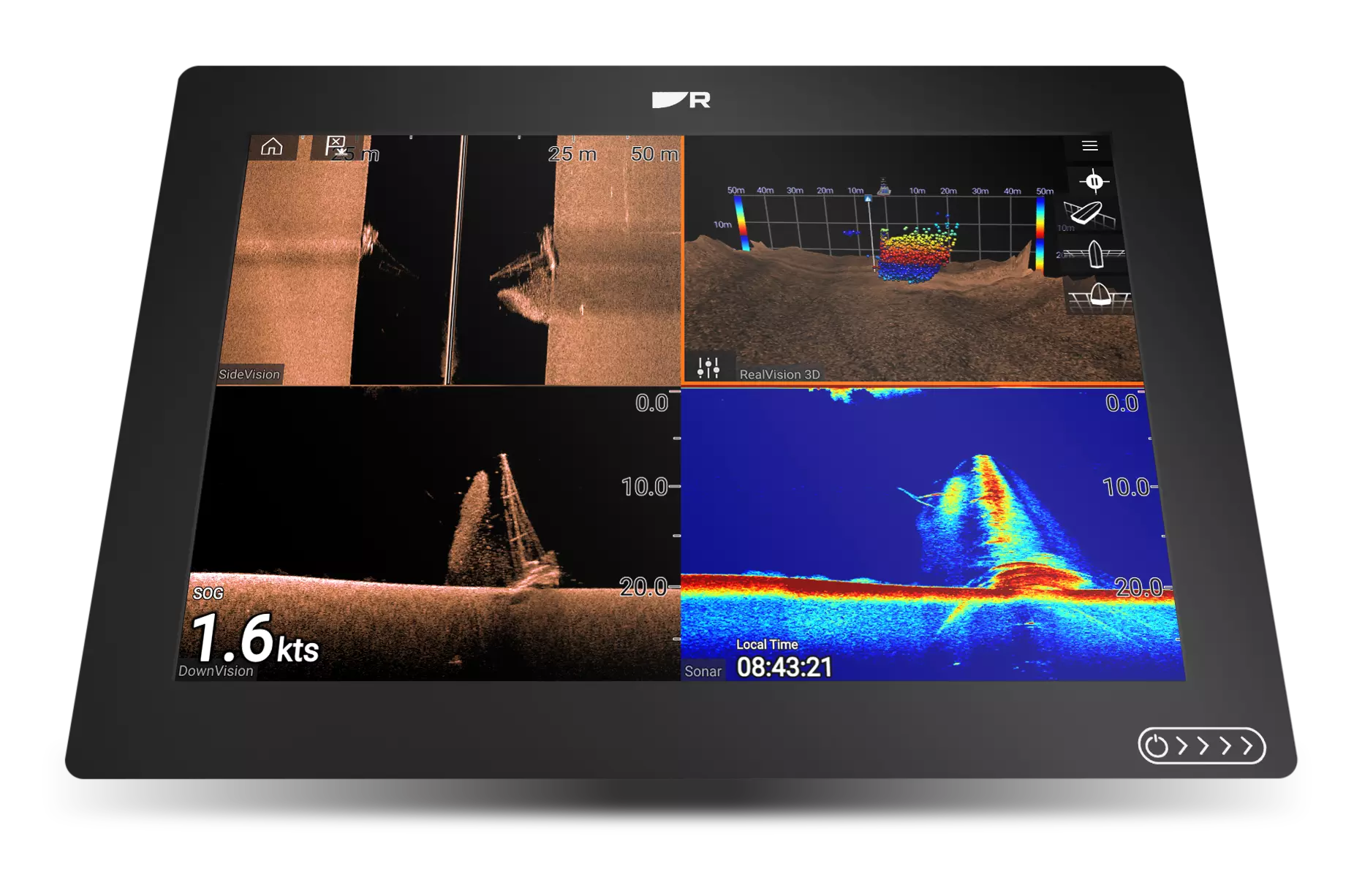

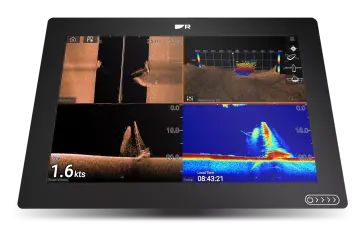

The Axiom+ RV’s LightHouse operating system makes navigating and finding fish easy. You can take advantage of a variety of sonar technologies, including CHRIP SideVision, DownVision and RealVision 3D, as well as high-frequency CHIRP sonar for finding fish and determining the shape of the bottom.
CHIRP DownVision provides high-definition views of structure, fish habitat and man-made objects, while CHIRP SideVision lets you scan a wider area to see fish, structure and submerged objects to the sides of your boat.
RealVision 3D sonar provides gyro-stabilized, GPS-locked depth modeling of the bottom and water column, giving you a clear picture of your surroundings.
The built-in 600W digital sonar in the 50kHz and 200kHz frequency bands provides basic functionality, but you can increase performance with an optional adapter cable and AIRMAR transducer, allowing you to fish deeper with more power and lower frequencies.
Axiom+ RV’s updated IPS display technology delivers stunning colors for charts, sonar, radar, and video. Plus, new LightHouse color themes allow for improved visibility in different lighting conditions.
A powerful quad-core processor and larger internal storage for personal data and apps ensure a smooth user experience.
Axiom+ RV is ready to expand, so you can network multiple displays, radars, engines, marine cameras, and other accessories.
Nano-coated and impact-resistant HydroTough displays repel water, oil, and smudges, and all-weather HydroTough technology provides enhanced color and contrast, as well as precise touch control - even when wet.
This 12" display features built-in RealVision 3D and 600 Watt sonar, plus a preloaded LightHouse Northern Europe map. Dimensions (rack mounted): Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in). Connections: Micro-B USB cable.
Tuotenr: E70639-00-NEU
Valmistajan tuotenr: 14046
Lisävarusteet
- Screen size: 12"
- Touchscreen
- Sonar must be purchased separately
- Width: 314 mm (12.36 inches)
- Height: 217 mm (8.54 inches)
- Depth including cables: 178 mm (7.01 in)
- Micro-B USB cable
- Ethernet connection:
- RayNet (10/100 Mbits/s)
- 1 MicroSDXC card slot
- NMEA 2000 connection DeviceNet (power cable has a port with a male connector)
- Wireless connections: Bluetooth: V4.0, Wi-Fi: 802.11/b/g/n
- Internal memory: 16 GB solid state (14 GB available)
- Sensor connection: 25-pin RealVision connector. Requires A80490 adapter cable when using CPT-S sensors.
- Manufacturer's warranty 2 years, 1 additional year when product is registered with Raymarine within 90 days of purchase
Revamped Axiom+ multifunction display
Meet the next generation Raymarine AXIOM+ 12 RV multifunction display, the Axiom®+ RV, which takes fish-finding to a whole new level with RealVisionTM 3D CHIRP sonar technology. This updated display offers even brighter images with 25% brighter displays, making the entire navigation experience even better.
Enjoy responsive performance with a quad-core processor and expand Axiom+ RV's capabilities with solid-state radar, FLIR thermal imaging cameras, or add a marine camera and ClearCruise augmented reality for navigation.
The Axiom+ RV’s LightHouse operating system makes navigating and finding fish easy. You can take advantage of a variety of sonar technologies, including CHRIP SideVision, DownVision and RealVision 3D, as well as high-frequency CHIRP sonar for finding fish and determining the shape of the bottom.
CHIRP DownVision provides high-definition views of structure, fish habitat and man-made objects, while CHIRP SideVision lets you scan a wider area to see fish, structure and submerged objects to the sides of your boat.
RealVision 3D sonar provides gyro-stabilized, GPS-locked depth modeling of the bottom and water column, giving you a clear picture of your surroundings.
The built-in 600W digital sonar in the 50kHz and 200kHz frequency bands provides basic functionality, but you can increase performance with an optional adapter cable and AIRMAR transducer, allowing you to fish deeper with more power and lower frequencies.
Axiom+ RV’s updated IPS display technology delivers stunning colors for charts, sonar, radar, and video. Plus, new LightHouse color themes allow for improved visibility in different lighting conditions.
A powerful quad-core processor and larger internal storage for personal data and apps ensure a smooth user experience.
Axiom+ RV is ready to expand, so you can network multiple displays, radars, engines, marine cameras, and other accessories.
Nano-coated and impact-resistant HydroTough displays repel water, oil, and smudges, and all-weather HydroTough technology provides enhanced color and contrast, as well as precise touch control - even when wet.
This 12" display features built-in RealVision 3D and 600 Watt sonar, plus a preloaded LightHouse Northern Europe map. Dimensions (rack mounted): Width: 314 mm (12.36 in), Height: 217 mm (8.54 in), Depth including cables: 178 mm (7.01 in). Connections: Micro-B USB cable.
Tuotenr: E70639-00-NEU
Valmistajan tuotenr: 14046
