Steering systems
Control housings and installation kits for various engines.Steering systems -ryhmän tuotteet
- Minimum cable bending radius 200 mm
- Steering wheel rotation 2.5 turns
- Movement 230 mm
- Thrust force 120 kg, 1200 N, up to 40 kW
- Steering wheel diameter max 380 mm
- EN 29775 Safety standards, Norske Veritas approved T-67 control housing (black)
Steering system for outboard and sterndrive boats under 10.5 m and under 50 sol, EN 28848. A three-gear planetary gearset transmits the steering movement to the cable smoothly. The steering box is made of corrosion-resistant material. Small space requirement. The steering wheel rotation is 3.8 turns with a cable travel of 228 mm. Low backlash. Installation kit X34 or X35 is required for drum installation.
- Steering box T-71 FC
- Cable suitable for control housing: M66 and Mach90
- Mounting kit X34 or X35 is also required
- Max. steering wheel Ø 400mm
“Non feedback” steering box. A patented friction brake prevents the torque generated by the engine from returning to the steering wheel. The backlash-free planetary gear is light, durable and safe. The steering wheel rotates 3.8 times with a cable travel of 228 mm. The X34 or X35 installation kit is required to install the drum. The cable suitable for the steering box is M66 and Mach90.
- Control housing T-73 NRFC
- Compatible with Mach90 cable
- Mounting kit X34 or X35 is also required
- Max. steering wheel Ø 400 mm
Steering system for outboard and sterndrive boats under 9m and under 50 knots, EN 28848. The sturdy steering box is made of corrosion-resistant materials. Includes mounting hardware. The steering wheel has 3 turns with a cable travel of 228 mm. It must not be installed on boats that use a larger engine than what is recommended on the boat's nameplate. The cable suitable for the steering box is M66 and Mach90.
- Cable travel 228 mm
- Steering wheel rotation is 3 turns
- Max. steering wheel Ø 400 mm.
Equipped with a planetary gearbox. Suitable for outboard motors over 55 hp (40 kW), INU engines and boats with a rudder. Installation kit 20° or 90° required.
Suitable for the following cables: Ultraflex M90 Mach
- Thread 3/4'
- Up to 4.2 steering wheel turns with 228 mm of travel
- Maximum steering wheel diameter 406 mm
- Height: 161.5mm
- Width: 150mm
- Thickness: 126 mm
- Approved: CE EN 28848, ABYC P17
- For outboard motors over 55 hp (40 kW)
- 9513025242 X34 90° black mounting plate
- 9513025244 X35 20° black mounting plate
- 9513025246 X91 90° chrome mounting plate
- 9513025248 X90 90° chrome mounting plate with steering wheel lock
- Max. steering wheel Ø 406mm
Steering drum mounting kit for T71-T73 steering housings with black mounting frame. Angle 90 degrees.
- Installation kit
- Compatible with Ultraflex T71-73 steering drums
- Angle: 90 degrees

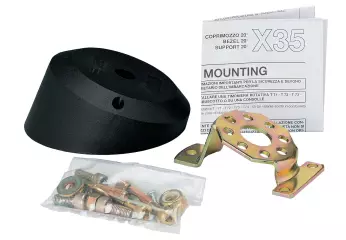

Steering drum mounting kit for T71-T73 steering housings with black mounting frame.
- Mounting kit angle: 20°
Wedge in the steering wheel shaft.
- Compatible with Ultraflex T 67 and T 85 steering housings.
