Raymarine i70s Depth, Speed and Wind Pack
- Screen size: 4.1" TFT LCD screen
- Connections: 1 x Seatalk ng connector
- Resolution: 320(H) x 240(V)
- Brightness: Brightness: 1200 cd/m2
- Color: 16-bit color (64k colors)
- Protection class: IPX6, IPX7
- Operating voltage: 12V
- Operating voltage range: 9 - 16 V DV
- Power consumption: 1.7 W
- Operating temperature: -25 - +55C
i70s instrument package with wind, depth and speed sensors.

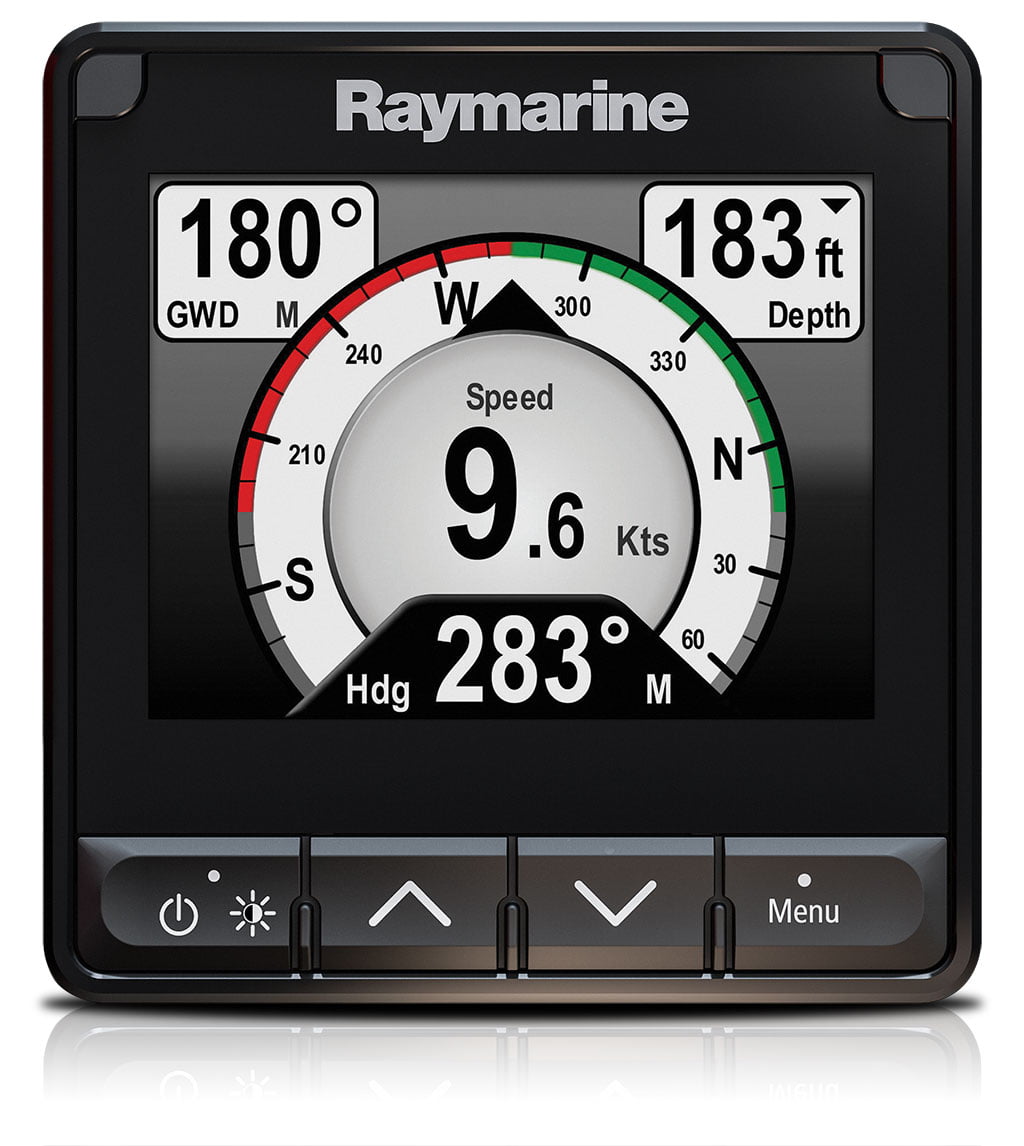

The i70s is a multi-function meter with digital, analog and graphical displays for depth, speed, wind, etc.
The i70s multifunction instrument gives you the flexibility to display the most important instrumentation and navigation information for you. The i70s features a crisp, bright 4.1-inch display and is easily customizable with digital, analog and graphical displays for depth, speed, wind and more. Add the i70s to your existing Raymarine instrument system or create a network of i70s displays and transducers - the choice is yours.
The i70s puts frequently used navigation functions right at your fingertips. The LightHouse instrument interface is compatible with Raymarine LightHouse multifunction displays, so Raymarine multifunction display users will feel right at home using the i70s.
Key features of the I70S
- Oversized, sunlight-viewable 4.1-inch LCD display
- Multiple color palette options for optimal day and night viewing
- Optical bonding improves brightness, maximizes contrast and eliminates fogging
- Large, clear characters up to 43 mm/1.7 inches high for easy reading
- AIS repeater allows viewing of nearby AIS targets

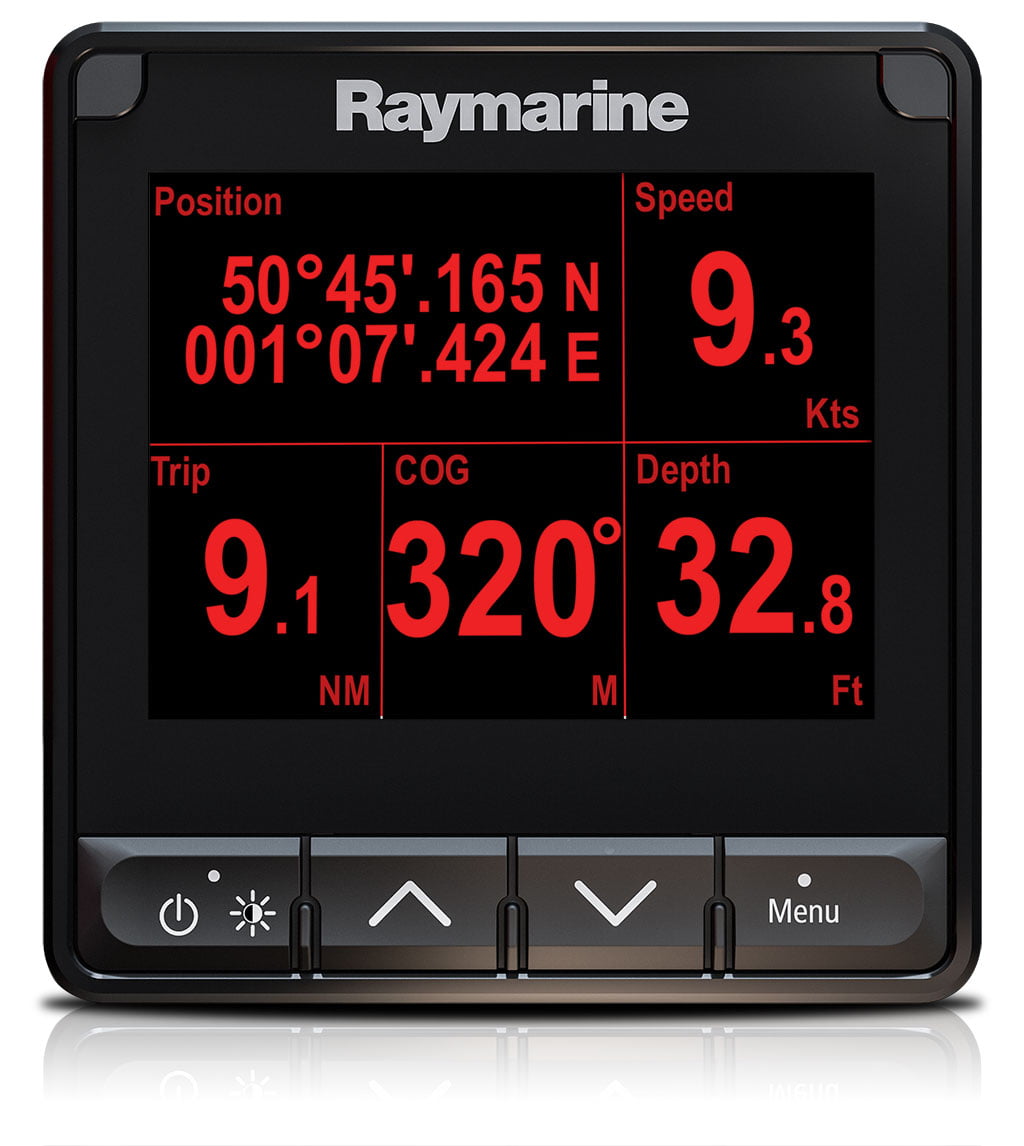

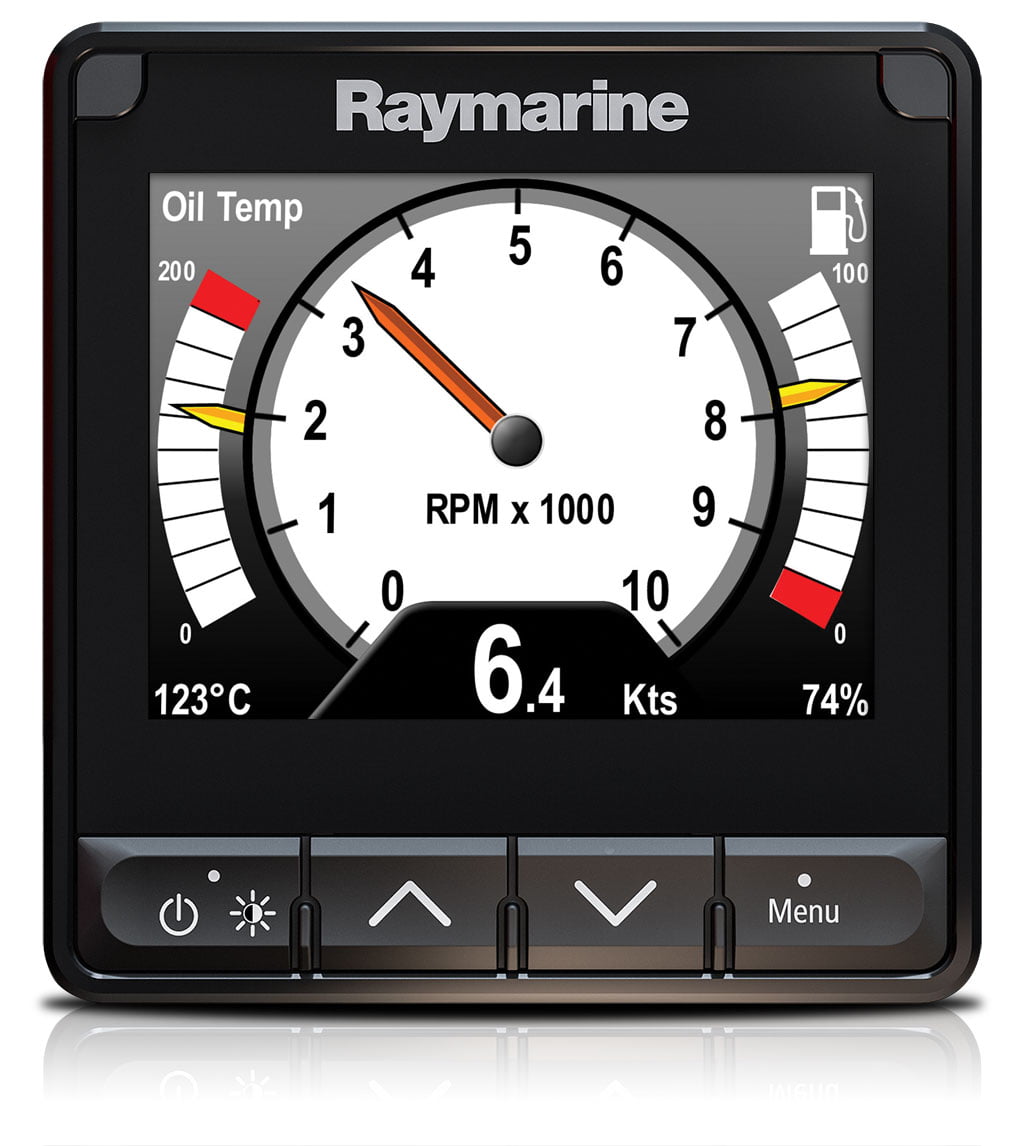

- Data views include: Wind, Speed, Depth, Tridata, Engine, Environment, Fuel, Navigation
- Compatible with SeaTalkNG, NMEA2000 and SeaTalk networks
- Compact footprint
- Low power consumption
- Surface mount or optional suspension bracket mounting kit
Full network capabilities
The Raymarine i70s can be connected to the following ship networks:
- First generation SeaTalk networks using a SeaTalk-to-SeaTalkNG adapter cable
- Current generation SeaTalkNG networks
- NMEA2000 networks using a SeaTalkNG -DeviceNet adapter
- In addition to flexible network readiness, the i70s features user-selectable data sources for integration into multi-sensor networks.
AIS repeater

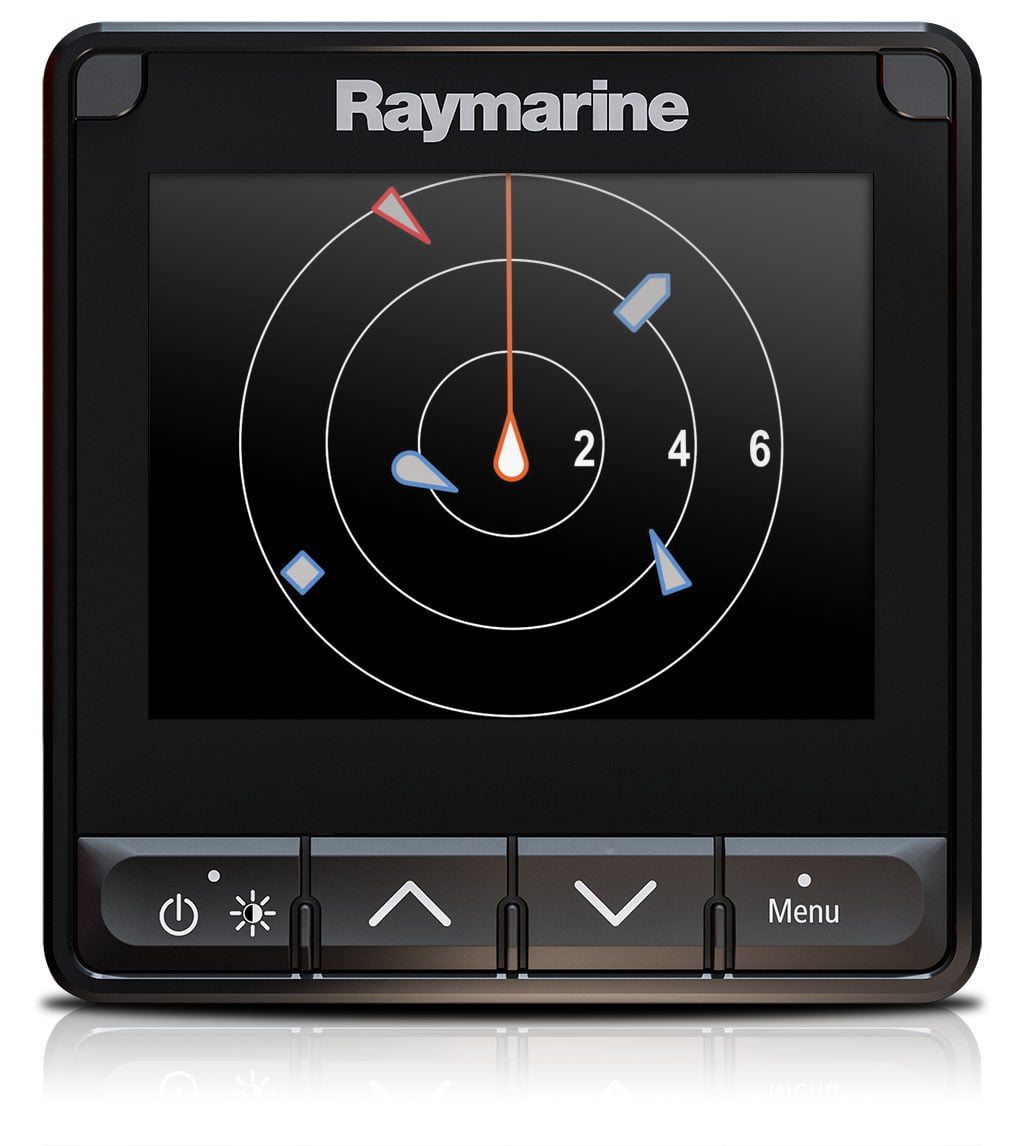

Display AIS targets from NMEA 2000 AIS receivers. View the 25 closest AIS-equipped vessels and select individual targets to get vessel information.
Sensor connection
Pair your i70s with the innovative iTC-5 instrument transducer converter and seamlessly integrate with analog depth, wind, speed, compass and rudder sensors. Alternatively, connect your i70s to the DST800 and p79s Airmar smart transducers.

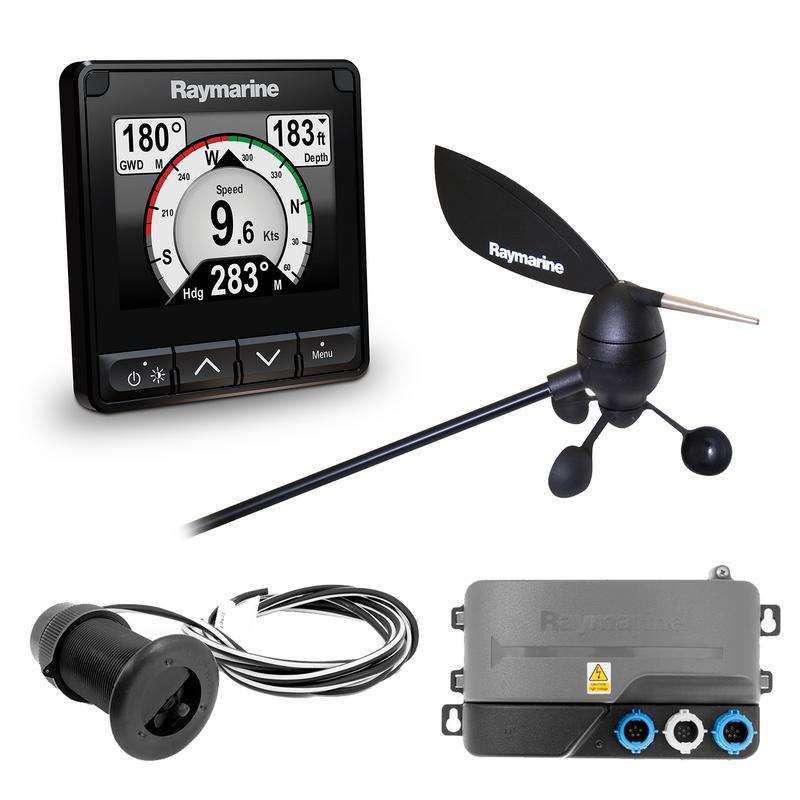

In the package
- i70s meter E70327
- Wind sensor E22078
- DST800 echo sounder/log/heat sensor
- iTC-5 meter sensor converter E70010
- 3m trunk cable A06035
- 5-position network connector A06049
- Seatalk ng power cable A06049
- 2 x Seatalk ng termination resistor A06031
Tuotenr: 14038
Valmistajan tuotenr: T70216
- Screen size: 4.1" TFT LCD screen
- Connections: 1 x Seatalk ng connector
- Resolution: 320(H) x 240(V)
- Brightness: Brightness: 1200 cd/m2
- Color: 16-bit color (64k colors)
- Protection class: IPX6, IPX7
- Operating voltage: 12V
- Operating voltage range: 9 - 16 V DV
- Power consumption: 1.7 W
- Operating temperature: -25 - +55C
i70s instrument package with wind, depth and speed sensors.
The i70s is a multi-function meter with digital, analog and graphical displays for depth, speed, wind, etc.
The i70s multifunction instrument gives you the flexibility to display the most important instrumentation and navigation information for you. The i70s features a crisp, bright 4.1-inch display and is easily customizable with digital, analog and graphical displays for depth, speed, wind and more. Add the i70s to your existing Raymarine instrument system or create a network of i70s displays and transducers - the choice is yours.
The i70s puts frequently used navigation functions right at your fingertips. The LightHouse instrument interface is compatible with Raymarine LightHouse multifunction displays, so Raymarine multifunction display users will feel right at home using the i70s.
Key features of the I70S
- Oversized, sunlight-viewable 4.1-inch LCD display
- Multiple color palette options for optimal day and night viewing
- Optical bonding improves brightness, maximizes contrast and eliminates fogging
- Large, clear characters up to 43 mm/1.7 inches high for easy reading
- AIS repeater allows viewing of nearby AIS targets
- Data views include: Wind, Speed, Depth, Tridata, Engine, Environment, Fuel, Navigation
- Compatible with SeaTalkNG, NMEA2000 and SeaTalk networks
- Compact footprint
- Low power consumption
- Surface mount or optional suspension bracket mounting kit
Full network capabilities
The Raymarine i70s can be connected to the following ship networks:
- First generation SeaTalk networks using a SeaTalk-to-SeaTalkNG adapter cable
- Current generation SeaTalkNG networks
- NMEA2000 networks using a SeaTalkNG -DeviceNet adapter
- In addition to flexible network readiness, the i70s features user-selectable data sources for integration into multi-sensor networks.
AIS repeater
Display AIS targets from NMEA 2000 AIS receivers. View the 25 closest AIS-equipped vessels and select individual targets to get vessel information.
Sensor connection
Pair your i70s with the innovative iTC-5 instrument transducer converter and seamlessly integrate with analog depth, wind, speed, compass and rudder sensors. Alternatively, connect your i70s to the DST800 and p79s Airmar smart transducers.
In the package
- i70s meter E70327
- Wind sensor E22078
- DST800 echo sounder/log/heat sensor
- iTC-5 meter sensor converter E70010
- 3m trunk cable A06035
- 5-position network connector A06049
- Seatalk ng power cable A06049
- 2 x Seatalk ng termination resistor A06031
Tuotenr: 14038
Valmistajan tuotenr: T70216
