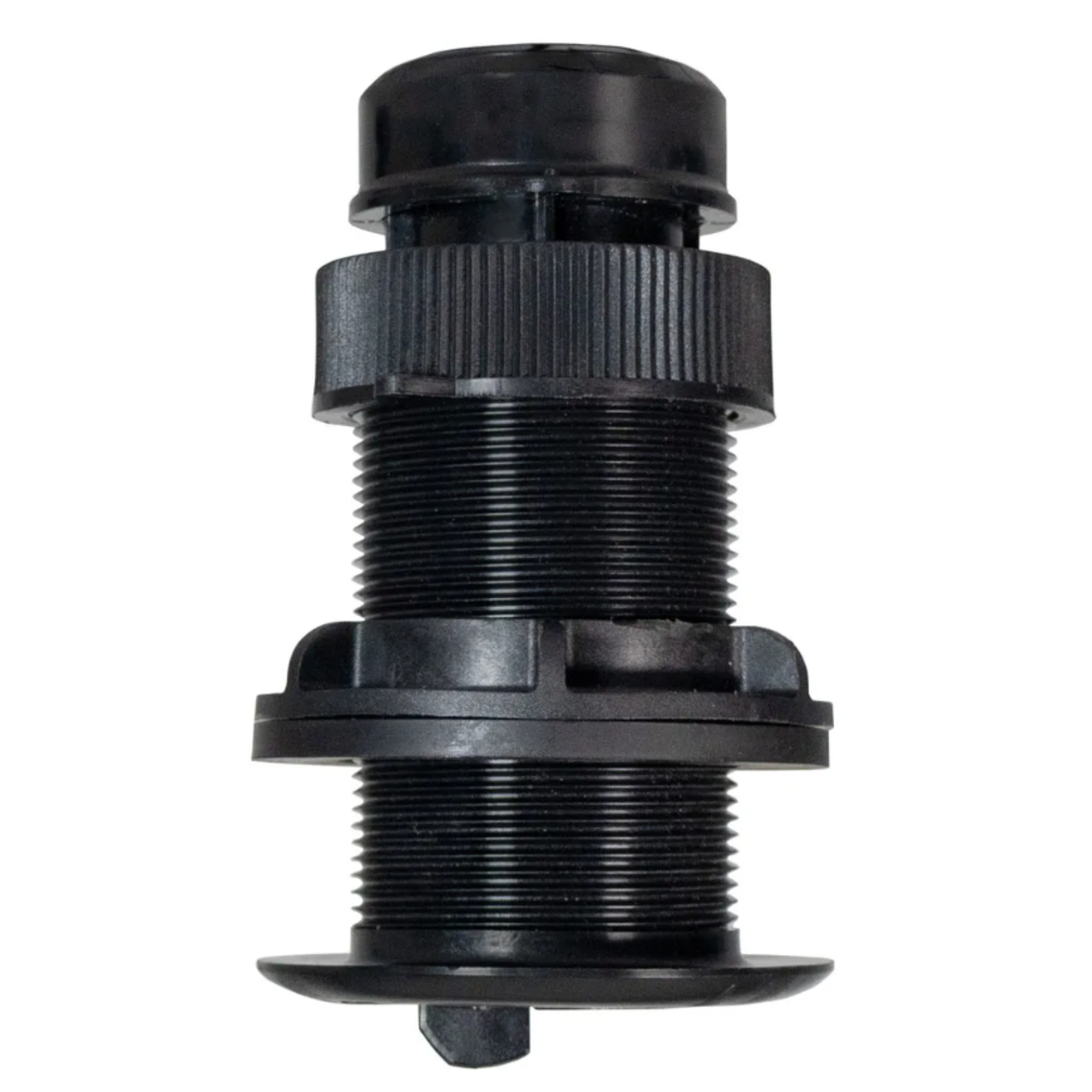

Garmin Airmar DST820 Smart triducer transducer
- Measurement data: Depth, speed and temperature
- Motion data: Tilt, trim, pitch and roll
- Network: NMEA 2000
- Wireless connection: Bluetooth
- Frequency: 235 kHz
- Power: 100W
- Beam width: 10 × 44°
- Maximum depth: 330 feet / approximately 100 m
- Speed ??information update frequency: 5 Hz
- Supported base angle: 0–22°
- Product number: 010-11051-30
The Garmin Airmar DST820 Smart is a versatile through-beam transducer that measures depth, water speed and water temperature with a single sensor. The built-in motion sensor also provides information on the boat's pitch, trim, and pitch and roll.
The DST820 is particularly well suited for sailboats and other vessels where accurate and fast-updating speed information is important. Speed ??information updates at a frequency of 5 Hz, allowing for consistent speed display on compatible chartplotters and gauges.
The sensor is connected to the boat's NMEA 2000 network. Thanks to the Bluetooth connection, the sensor data can be calibrated using the Airmar CAST app.
Features
- Measures depth, speed through water and water temperature
- Built-in motion sensor
- Measures pitch, trim, and longitudinal and lateral movement
- Speed ??information update frequency 5 Hz
- Bluetooth connection for calibration
- Compatible with Airmar CAST app
- Connection to NMEA 2000 network
- Maximum reported depth 100 m
- Operating frequency 235 kHz
- Wide 10 x 44 degree beam angle
Designed for precise measurement
The 235 kHz operating frequency helps reduce the risk of interference from other sonar devices on the boat. The wide, fan-shaped 10 x 44 degree beam makes it easy to detect the bottom, even when the transducer is mounted on a hull with a higher draft angle or on a sailboat that lists while sailing.
Specifications
- Sensor type feed-through sensor
- Data to be measured: depth, speed in relation to water and water temperature
- Speed ??information update frequency 5 Hz
- Frequency 235 kHz
- Cone angle 10 x 44 degrees
- Maximum reported depth 100 m
- Network connection NMEA 2000
- Wireless connection Bluetooth
- Calibration with Airmar CAST app
Prodnr: 13859
Manufacturer prodnr: 010-11051-30
- Measurement data: Depth, speed and temperature
- Motion data: Tilt, trim, pitch and roll
- Network: NMEA 2000
- Wireless connection: Bluetooth
- Frequency: 235 kHz
- Power: 100W
- Beam width: 10 × 44°
- Maximum depth: 330 feet / approximately 100 m
- Speed ??information update frequency: 5 Hz
- Supported base angle: 0–22°
- Product number: 010-11051-30
The Garmin Airmar DST820 Smart is a versatile through-beam transducer that measures depth, water speed and water temperature with a single sensor. The built-in motion sensor also provides information on the boat's pitch, trim, and pitch and roll.
The DST820 is particularly well suited for sailboats and other vessels where accurate and fast-updating speed information is important. Speed ??information updates at a frequency of 5 Hz, allowing for consistent speed display on compatible chartplotters and gauges.
The sensor is connected to the boat's NMEA 2000 network. Thanks to the Bluetooth connection, the sensor data can be calibrated using the Airmar CAST app.
Features
- Measures depth, speed through water and water temperature
- Built-in motion sensor
- Measures pitch, trim, and longitudinal and lateral movement
- Speed ??information update frequency 5 Hz
- Bluetooth connection for calibration
- Compatible with Airmar CAST app
- Connection to NMEA 2000 network
- Maximum reported depth 100 m
- Operating frequency 235 kHz
- Wide 10 x 44 degree beam angle
Designed for precise measurement
The 235 kHz operating frequency helps reduce the risk of interference from other sonar devices on the boat. The wide, fan-shaped 10 x 44 degree beam makes it easy to detect the bottom, even when the transducer is mounted on a hull with a higher draft angle or on a sailboat that lists while sailing.
Specifications
- Sensor type feed-through sensor
- Data to be measured: depth, speed in relation to water and water temperature
- Speed ??information update frequency 5 Hz
- Frequency 235 kHz
- Cone angle 10 x 44 degrees
- Maximum reported depth 100 m
- Network connection NMEA 2000
- Wireless connection Bluetooth
- Calibration with Airmar CAST app
Prodnr: 13859
Manufacturer prodnr: 010-11051-30
