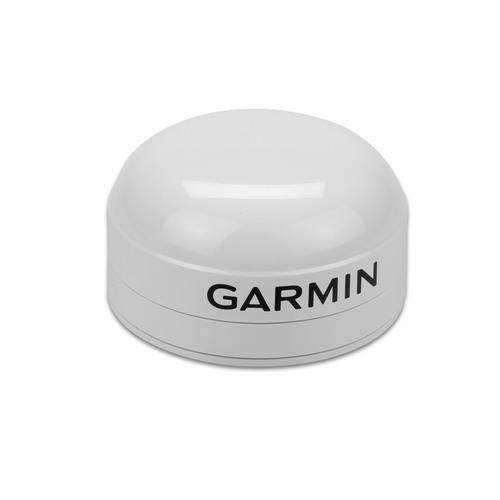

White Garmin patch cursor offers high accuracy

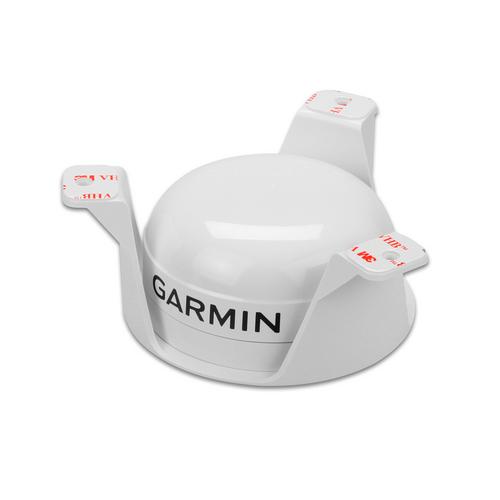

This device combines a course meter and GPS receiver into one device. It connects easily via NMEA 2000 and can be installed in a variety of mounting options. Of course, it is weatherproof and can withstand all weather conditions.
Accurate data means safer navigation!
Multi-frequency GNSS provides very accurate positioning – often to within 1 meter. In addition, the high update rate (10 Hz) provides high sensitivity to motion and changes in position, speed and time. The magnetic heading indicator is also accurate to within 3 degrees.
The GPS 24xD is the perfect companion for compatible chartplotters and autopilots, providing complete radar overlay and chart stability even at low speeds.
Specifications
- Dimensions: Ø91.6 x H49.5 mm
- Weight: 201g
- Cable length: 6 m
- Temperature range: -30°C - 80°C
- Housing: Fully sealed and impact-resistant plastic alloy (waterproof IPX7)
- Safety distance to compass: 150 mm
- Voltage: 9-32 VDC
