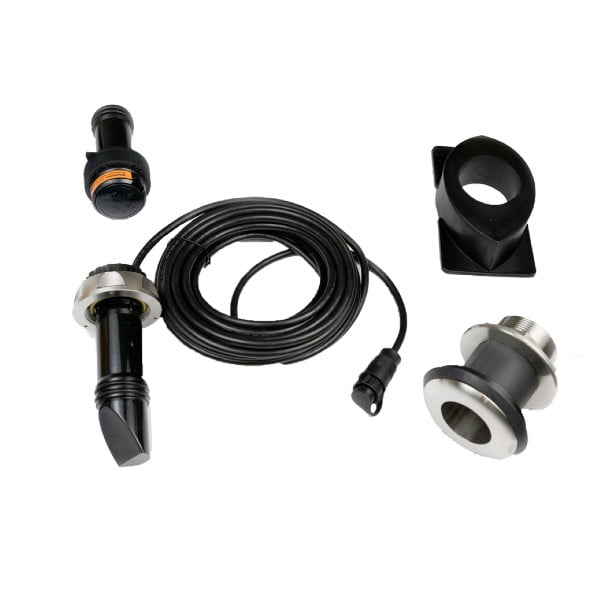

Simrad ForwardScan Forward-Looking Transducer
- Simple 2D view of the front base
- Navigate safely with ForwardScan data placed on the map
- See up to 8 times deeper than your current depth (typically 4-5 times deeper)
- Designed to minimize interference from current 200 kHz transducers
- Built-in temperature sensor adds value
- Removable transducer for easy installation and maintenance
- Connects to StructureScan®-HD ports on compatible displays or sonar modules
Forward-looking transducer
ForwardScan forward sonar gives you a clear view of the bottom ahead of your vessel. Award-winning technology protects your vessel from bottom strikes in shallow, unknown or uncharted waters.
ForwardScan typically provides a forward view of 4-5 times your current depth. So in 3 meters (10 feet) of water, you can see the bottom 12-15 meters (40-50 feet) away. Under ideal conditions, ForwardScan can see even further, up to 8 times your current depth. The 180 kHz ForwardScan transducer is designed to minimize interference from common 200 kHz transducers, allowing it to be used alongside existing depth or echo sounders.
Simple 2D view and map overlays
Get a clear and understandable view of the bottom ahead. Bottom color tracking shows the bottom as solid terrain in a clear side view. For even more detailed information, you can switch the view to show the entire water surface. This allows you to identify potential hazards such as dock bollards.

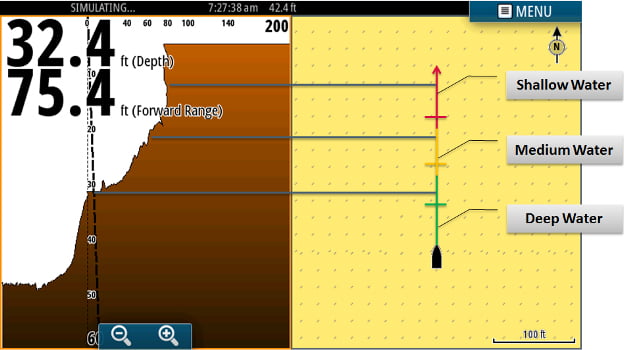

You can also overlay ForwardScan depth data on the chart, which is perfect for boating: The headline view uses colored segments to represent deep, medium and shallow water ahead. Depths are customizable to suit your boat's draft, and a shallow water alarm ensures you never miss a shallow spot.
Easy to install and maintain
The ForwardScan transducer is compatible with almost any vessel and hull type thanks to its stainless steel, through-hull mount. The mount and included alignment piece can be installed in 29 mm (1.15 in) thick hulls at a 12-degree V-angle or 19 mm (3/4 in) thick hulls at a 20-degree V-angle.
The self-closing valve allows the ForwardScan transducer to be inserted and removed from the sleeve while in the water, making transducer installation and maintenance easy.
Compatible devices
- Simrad NSS Evo3S
- B&G ZEUS3
Prodnr: 000-11674-001
- Simple 2D view of the front base
- Navigate safely with ForwardScan data placed on the map
- See up to 8 times deeper than your current depth (typically 4-5 times deeper)
- Designed to minimize interference from current 200 kHz transducers
- Built-in temperature sensor adds value
- Removable transducer for easy installation and maintenance
- Connects to StructureScan®-HD ports on compatible displays or sonar modules
Forward-looking transducer
ForwardScan forward sonar gives you a clear view of the bottom ahead of your vessel. Award-winning technology protects your vessel from bottom strikes in shallow, unknown or uncharted waters.
ForwardScan typically provides a forward view of 4-5 times your current depth. So in 3 meters (10 feet) of water, you can see the bottom 12-15 meters (40-50 feet) away. Under ideal conditions, ForwardScan can see even further, up to 8 times your current depth. The 180 kHz ForwardScan transducer is designed to minimize interference from common 200 kHz transducers, allowing it to be used alongside existing depth or echo sounders.
Simple 2D view and map overlays
Get a clear and understandable view of the bottom ahead. Bottom color tracking shows the bottom as solid terrain in a clear side view. For even more detailed information, you can switch the view to show the entire water surface. This allows you to identify potential hazards such as dock bollards.
You can also overlay ForwardScan depth data on the chart, which is perfect for boating: The headline view uses colored segments to represent deep, medium and shallow water ahead. Depths are customizable to suit your boat's draft, and a shallow water alarm ensures you never miss a shallow spot.
Easy to install and maintain
The ForwardScan transducer is compatible with almost any vessel and hull type thanks to its stainless steel, through-hull mount. The mount and included alignment piece can be installed in 29 mm (1.15 in) thick hulls at a 12-degree V-angle or 19 mm (3/4 in) thick hulls at a 20-degree V-angle.
The self-closing valve allows the ForwardScan transducer to be inserted and removed from the sleeve while in the water, making transducer installation and maintenance easy.
Compatible devices
- Simrad NSS Evo3S
- B&G ZEUS3
Prodnr: 000-11674-001
