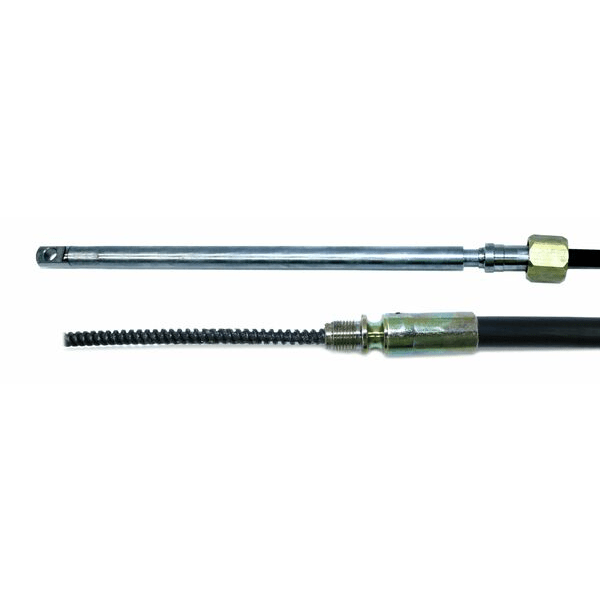

Ultraflex M58 Steering Cable, various lengths
-20%
- Flexible, multi-strand control cable
- Minimum bending radius 200mm
- Shell diameter 12.5mm
- Inner cable diameter 4mm
- From the top of the coiled wire: 6.2mm
- The given cable length is ~ shell dimension C + 56 cm.
- Length: 7'/2.1m - 18'/5.4m
Flexible, multi-stranded control cable with a minimum bending radius of 200 mm. Outer sheath Ø 12.5 mm, inner cable Ø 4 mm, outer sheath Ø 6.2 mm. The specified cable length is ~ outer sheath dimension C + 56 cm.
Required cable length when using a transom or engine well mount: measure the distance from the center of the steering shaft to the center of the engine, around the steering cable installation route. Subtract 10 cm for each 90° bend = required cable length.
Cable length when the cable sheath is attached to the engine exhaust pipe: as above, but add 30 cm to the length.
Required cable length when using a transom or engine well mount: measure the distance from the center of the steering shaft to the center of the engine, around the steering cable installation route. Subtract 10 cm for each 90° bend = required cable length.
Cable length when the cable sheath is attached to the engine exhaust pipe: as above, but add 30 cm to the length.
Tuotenr: 11134
Kampanjahinta
From 116,00 €145,00 €/ kpl
Yhteensä sis. alv 25.5%
Helsinki LauttasaariAvailable
Vantaa PorttipuistoAvailable
VerkkokauppaAvailabledelivery time 1 - 3 working days
Toimituksen hinta: 5,90 €Matkahuolto's Near Parcel
Lisävarusteet
- Flexible, multi-strand control cable
- Minimum bending radius 200mm
- Shell diameter 12.5mm
- Inner cable diameter 4mm
- From the top of the coiled wire: 6.2mm
- The given cable length is ~ shell dimension C + 56 cm.
- Length: 7'/2.1m - 18'/5.4m
Flexible, multi-stranded control cable with a minimum bending radius of 200 mm. Outer sheath Ø 12.5 mm, inner cable Ø 4 mm, outer sheath Ø 6.2 mm. The specified cable length is ~ outer sheath dimension C + 56 cm.
Required cable length when using a transom or engine well mount: measure the distance from the center of the steering shaft to the center of the engine, around the steering cable installation route. Subtract 10 cm for each 90° bend = required cable length.
Cable length when the cable sheath is attached to the engine exhaust pipe: as above, but add 30 cm to the length.
Required cable length when using a transom or engine well mount: measure the distance from the center of the steering shaft to the center of the engine, around the steering cable installation route. Subtract 10 cm for each 90° bend = required cable length.
Cable length when the cable sheath is attached to the engine exhaust pipe: as above, but add 30 cm to the length.
Tuotenr: 11134
